Some of our clients do not have prior experience in hydraulic cylinders and it can be a challenge. Thus to make it easier before you place an order, follow these simple steps in order to determine what cylinder do you really need.
1. Determine what type of hydraulic cylinder are you looking for. (single acting, double acting or telescopic)
2. Find out working pressure that is applicable on your current equipment.
3. Check the mountings of the cylinder on each end, it may vary. (cross tubes, clevises, pin eye, etc)

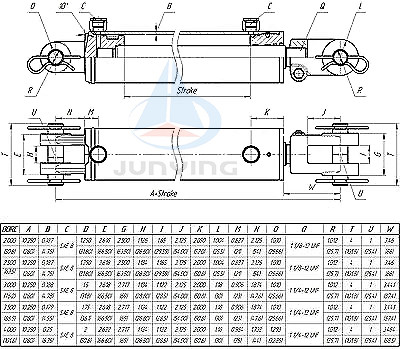

4. Take accurate measurements of the existing cylinder such as:
A. Bore diameter (piston inside)
B. Rod diameter (chrome plated bar)
C. Pin holes diameters on each side
D. Outer diameter of the cylinder tube (case)
E. Length of the cylinder in retracted and extended positions (make sure you take measurements from the center of the pin hole to the center of the pin hole)
5. Figure out the stroke of the cylinder (Extended length - Retracted length)
6. Find out thread port dimensions (SAE 6, SAE 8, SAE 4, etc)
